| Brand Name : | TY |
| Model Number : | 30B-C |
| Price : | USD1000 |
| Payment Terms : | D/P, T/T, Western Union |
| Supply Ability : | 100 |
| Delivery Time : | 5-8days |
Principle of Structure and Its Function:

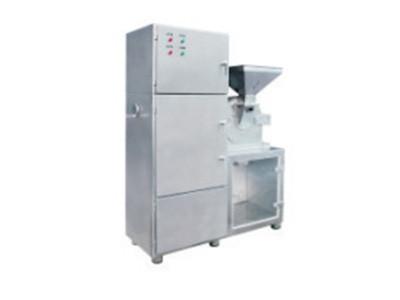

The grinder set consists of Model 30B grinder, EXC collector of raw
material and ESC collective duster. It solves the problem. i. e.
The dust is flying during the period of crushing raw material.
The principle of work is as follows: after raw material is fed into
the crushing chamber, it undertakes the comprehensive actions such
as impacted by teeth, shearing force, friction, impacted between
raw materials, finally the raw materials are crushed through
sieving. The needed powder can be got.
The grinder, collector of raw material and ESC collective duster
are all made of stainless steel and are in conformity with the
requirements of GMP.
Technical parameters:
| Model | 20B-C | 30B-C | 40B-C | 60B-C |
| Productive capacity(kg/h) | 60-150 | 100-300 | 160-800 | 500-1600 |
| Main shaft speed (r/min | 4500 | 3800 | 3400 | 2800 |
| Inlet particle size(mm) | 6 | 10 | 12 | 15 |
| Degree of fineness of finished product(mesh) | 60-120 | 60-120 | 60-120 | 60-120 |
| Motor power(kw) | 4 | 5.5 | 11 | 15 |
| Fan power(kw) | 1.5 | 1.5 | 1.5 | 2.2 |
| Overall dimension (LxWxH)(mm) | 1100x600x1650 | 1200x650x1650 | 1350x700x1700 | 1550x1000x1750 |
|
|
